OHE Height and Stagger Gauge

Product details

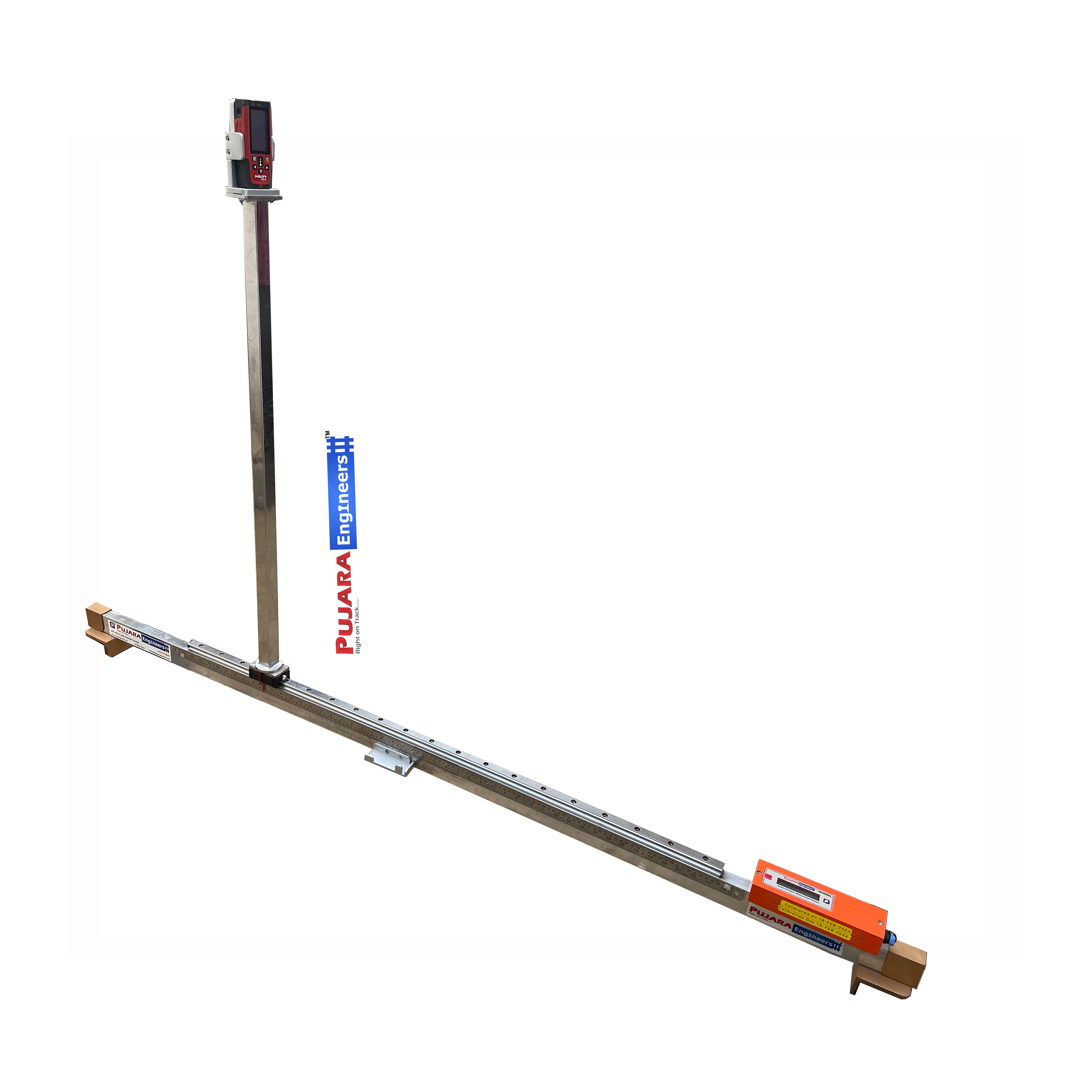

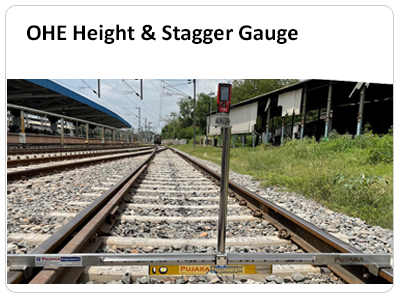

Pujara Engineers OHE Height and Stagger Gauge is very easy, safe and fast to use instrument equipped with Laser Distance meter, which can work in bright daylight. Laser Height & Stagger Gauge can be used without any power block. Height is measured by Laser distance meter and is digitally displayed on LCD screen while stagger is read on a physical scale on the body of instrument, at the position of height measurement. Instrument is also equipped with digital inclinometer and digital super-elevation/cant measurement system.

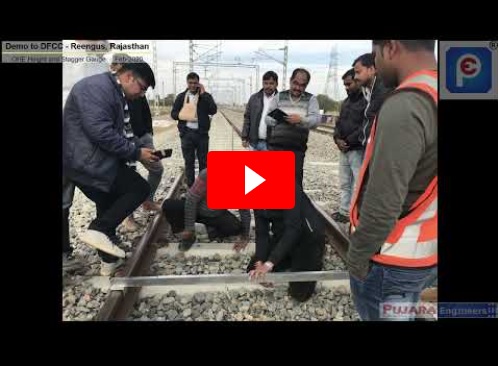

The most prominent feature of this instrument is to quicky take measurements from a standing position reducing the fatigue caused by repeated bending motion. Instrument is extensively used by Zonal Railways, DFCC and their respective contractors in INDIA.

Pujara Engineers OHE Height and Stagger Gauge has evolved over a period of 7 years and now being manufactured in its 4th major design refinement. The Instrument is constantly being improved. Complete research and development are carried out in India, contributing to make-in-India initiative, and cruising towards self-reliant INDIA. This Laser Height and Stagger Gauge is now rapidly being adopted by zonal railways as a standard equipment.

• FAST & Safe OHE Measurements
• Accurate Laser Based OHE Height Measurement System
• Easy and swift Direct Stagger Measurement
• Accurate Cantt/Super-Elevation Measurement System
• Supports accurate Implantation Measurement
• IP-65 Environment Protection with Detachable Laser Module
• Fully Insulated Legs, instrument can be used on circuited track.
• Easy and Quick Daytime Working with Viewfinder & Backlit Display.
• Ergonomically Designed for One Man Operation.

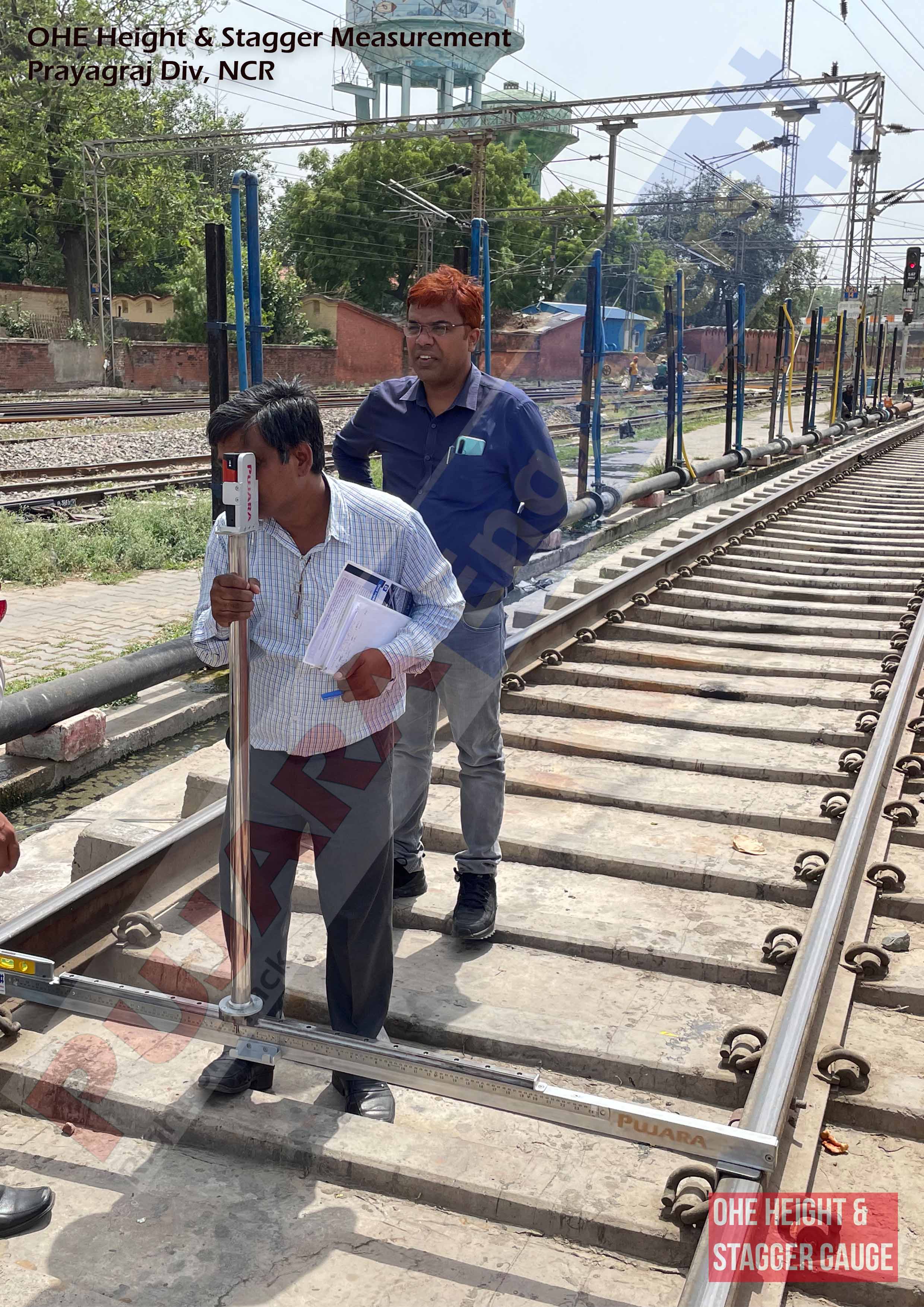

• Quick measurements from standing position.

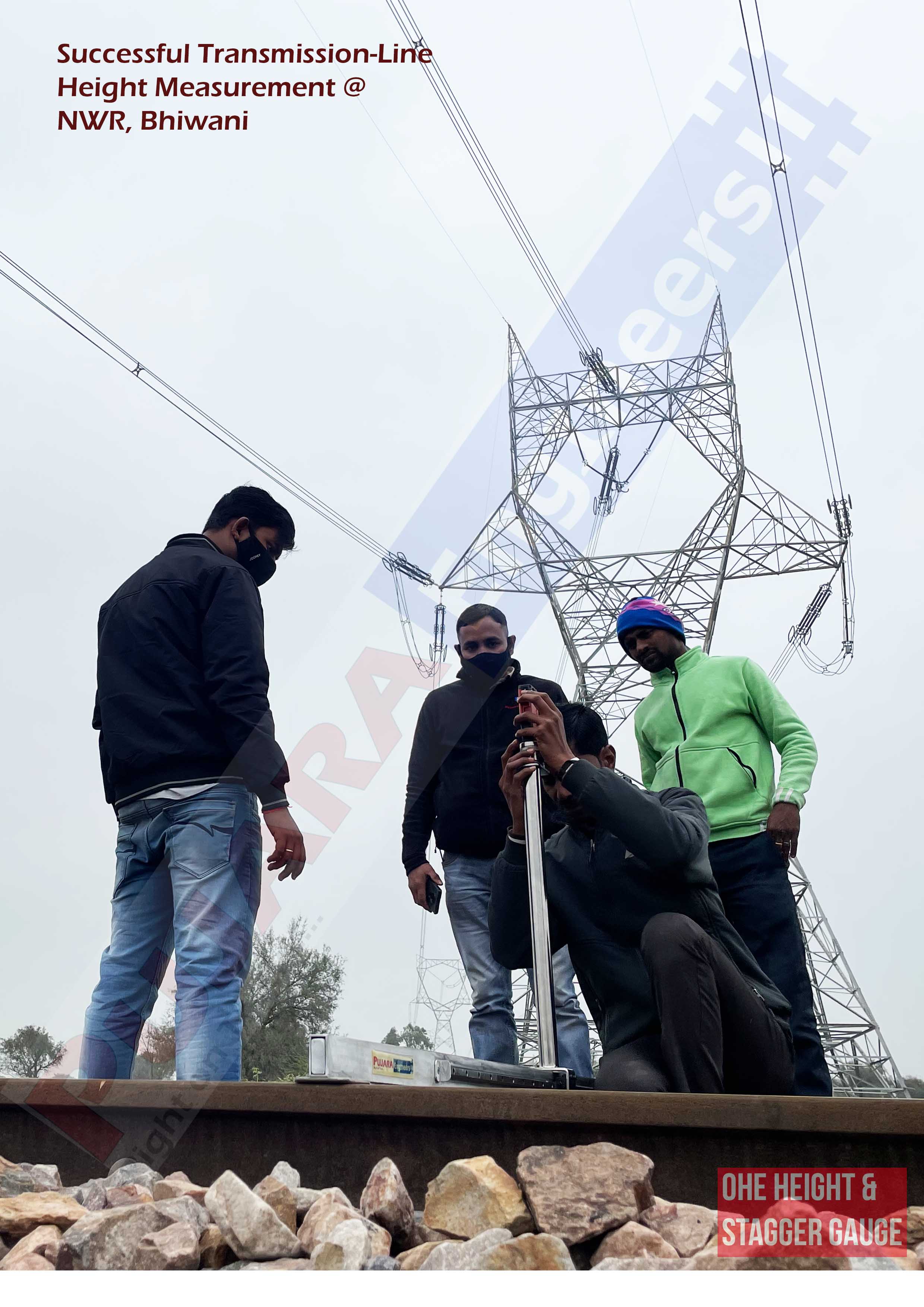

• Height Measurement of any over-passing structure i.e., flyovers, bridges, Foot over bridges, buildings, high-tension power lines etc, from rail level.
• Rugged and Sturdy Design with Stainless Steel and Aluminium Construction.
• Wear resistant & Zero Rusting Built.
• No requirement of power block and easily off trackable.
• Dismantlable, Easy to Carry, Store and Transport.
